CalibFX® Lens: Universal optics profiler for camera operators
Quite less hassle for profiling your lenses thanks to our comprehensive workflow!
Available either into our new CalibFX® Suite, or, as a standalone software license, the workflow implements a straightforward process with complete control of the data at every step, to deliver accurate calibrated lens profiles, in a limited time.
Edit and generate any accurate lens profile for
Smart recording of lens intrinsics to generate highly accurate lens profiles
CalibFX® Lens has been engineered to provide camera operators with a steadfast solution for processing highly accurate lens mapping that suits any kind of optic, whatever the manufacturer or type of lens: ENG/EFP lens, Cine Prime, Hybrid zoom, Broadcast zoom lens.
Featuring a proven lens mapping process, our software takes advantage of custom-developed “smart” algorithms to generate any individual lens file embedding the key intrinsic parameters of your optic: K1/K2, FOV, focus distance, nodal offset, aperture.

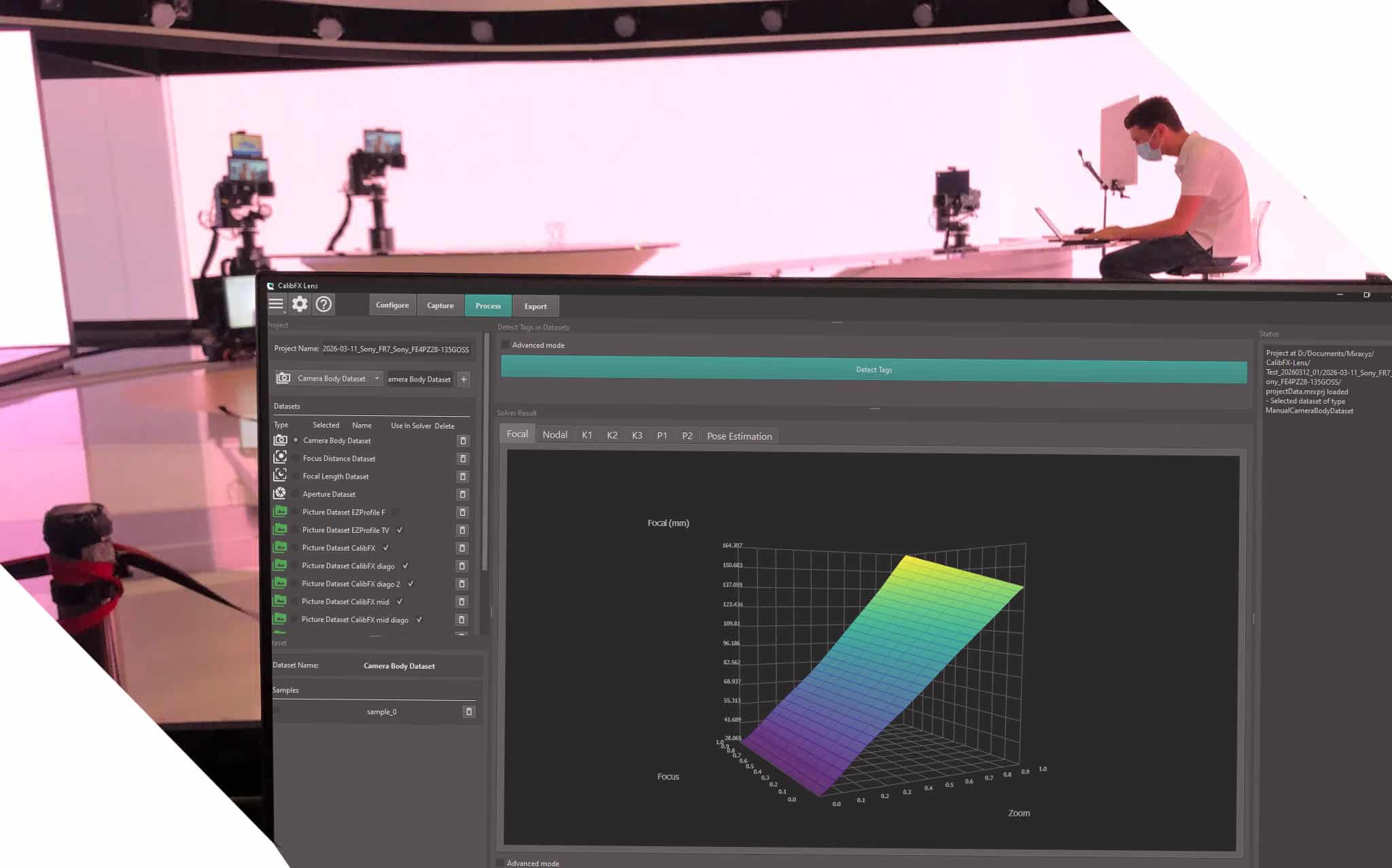

Automated image processing allowing operator to save time and efforts
Thanks to its automated image processing feature, CalibFX® Lens automatically records the lens intrinsic on the entire ranges of zoom/focus of the optic, before recording a three-dimensional calibration object provided as a compiled lens profile.
The software can be operated using any tracking device outputting either the Freed or OpenTrackIO protocol – The camera operator will avoid the risk of possible errors on measurements, while ensuring a steady calibration process: ~30 min on average for any Cine Prime and up to 2H for a typical Broadcast zoom lens.

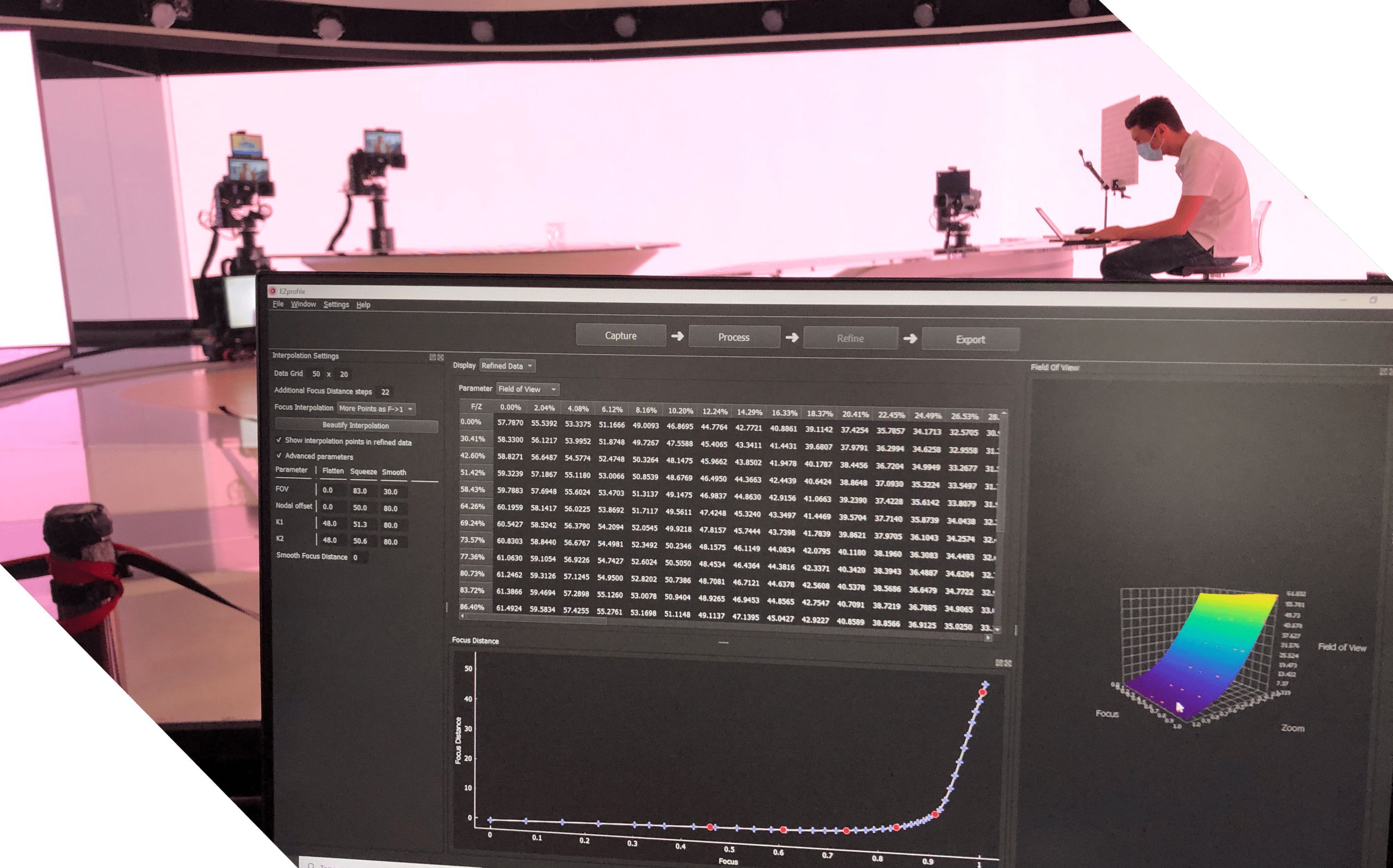

Full control of your lens profiles for newly edited and pre-calibrated files
Taking into account that many users need to quickly and easily swap their different optics during their live production phase, CalibFX® Lens is the perfect tool to generate all necessary lens profiles during the prep phase, as these will be loaded into the targeted 3D rendering pipeline prior day one of the shooting.
Alternatively, the software can also load any existing lens profile that has been compiled over CalibFX® Lens prior and for a targeted 3D workflow: operator will be able to refine such a lens profile with possibility to re-export it to another compatible engine.
Highest matching precision between your real environment and 3D layers
Whether producing over cyclorama green screen or LED-based XR stage, the overall quality of the lens profile appears key to avoid any possible visual inaccuracies on the 3D rendered layer, thus, especially for typical virtual set extensions for which the edges of the LED surfaces must perfectly match the virtual set.
As critical complement to the camera tracking, CalibFX® Lens helps you achieving a “pixel perfect” matching precision between your real set environment and virtual assets thanks to accurate lens intrinsic measurements being compiled into each profile.

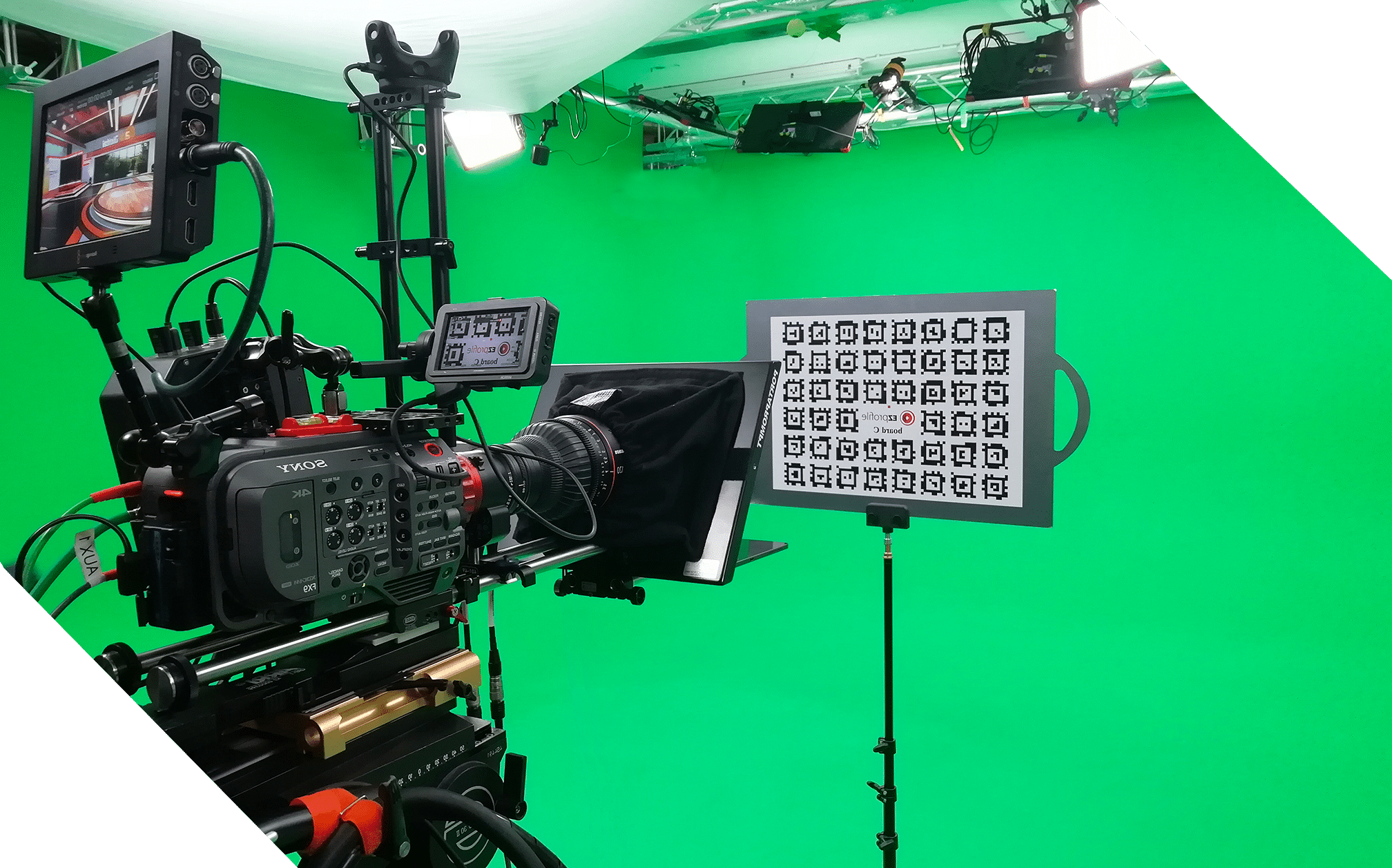

Unique, Multi-resolution calibration tag board
Whether for any CalibFX® Suite Bundle order, or, in case of a single CalibFX® Lens license purchase, this unique tag board support will be meticulously packaged and provided into its dedicated transport bag.
Recommanded software & hardware configuration
To conveniently operate CalibFX® Lens on Win PC or laptop, we recommend using one SDI to USB converter such as the AJA U-TAP 3G-SDI USB 3.0 capture device
CPU: Intel or AMD multicore with at least 4 cores
RAM: at least 16 Gigs DDR4 or superior
Optic calibration tools support
Leverage possibilities of RigFX® with CalibFX® Suite, our universal optic calibration workflow that combines:
- CalibFX® Lens, a powerful lens profile editor, loads lens file to RigFX®
- CalibFX® Lineup, an advanced camera offsets calibrator, direct bridge to RigFX®
to achieve very precise line-up when performing visually complex XR set extensions
Get trained on our calibration workflows
On-site calibration workflow mastering
Features x1-day on-site to teach our own methodology for lens profiling/calibration through the CalibFX Suite workflows, including guided and complete calibration of 1 lens reference: Broadcast motorized zoom, Cine Zoom, or Cine Prime lens.
Remotely guided training plan
Features x3 hours of online assistance dispensed by our technician that will help mastering both our lens profiling and advanced camera offsets calibration workflows, thus, for a limited number of capture points.
Extend your maintenance and support plans workflows
For existing CalibFX Suite, CalibFX Lens, CalibFX Lineup licensees, Miraxyz does propose the following plans to safely maintain your workflows over the time:
Annual basic support extension
Extend the initial support service of your CalibFX Suite/Lens/Lineup purchase, with 12 additional months of our basic support via email.
Annual software upgrades extension
Upgrade to the latest released version of the CalibFX Lens + CalibFX Lineup software. This plan includes access to new software releases over a continuous 12-month period.
