Designed for mastering virtual studio conditions as either green screen cyclorama or latest xR LED-based volume studios, the EZtrack Complete Studio Bundle promises real hassle-free installation and unmatched versatility since the system’ setup completion is usually achieved in less than 2 hours from kit unboxing!

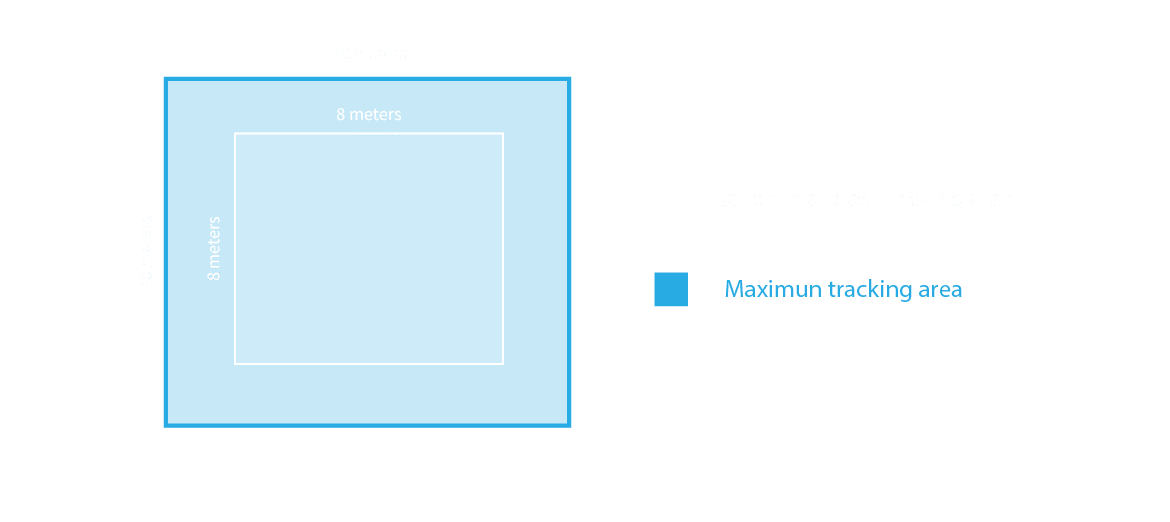

Being presented here is our standard “Lighthouse” infrared-type combo featuring a fully markerless tracking setup with 6DOF camera moves for any kind of cranes, jibs, dollies, sliders, steadicams, and typical handheld/shoulder studio cameras, thus, within a large 100sqm tracking area (up to 10x10m).
Featuring fairly limited hardware, our Complete Studio bundle provides:
– x1 EZtrack GEN.2 Hub unit, with V-lock clamp and power adapter
– x4 infrared Lighthouse 2.0 Base Stations with their power adapters

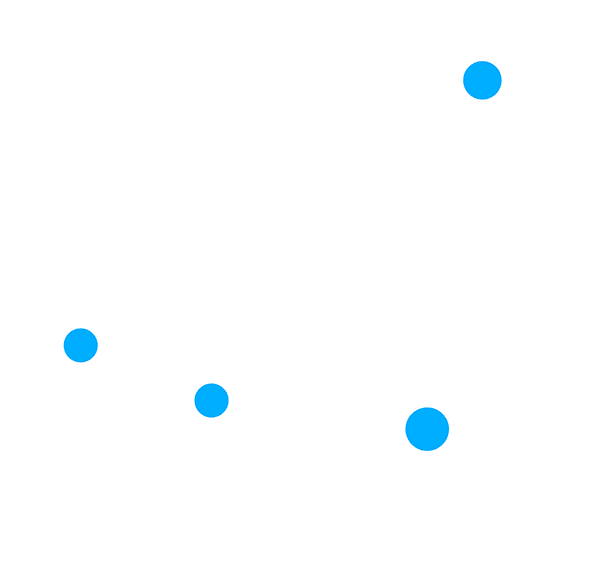

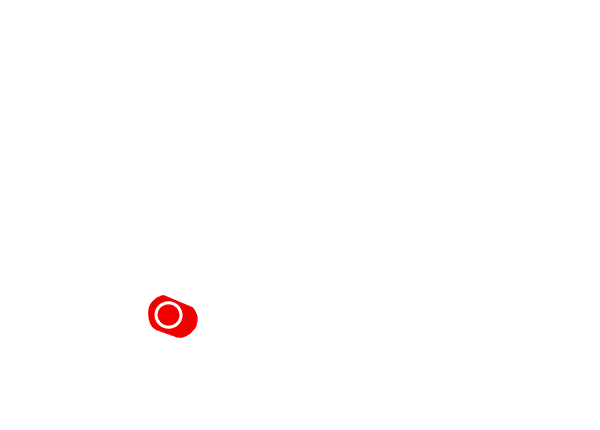

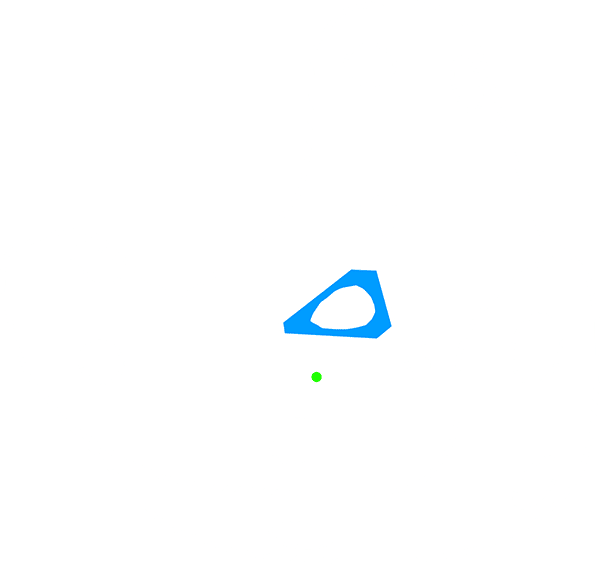

– x2 positional trackers as Vive 3.0 or Tundra trackers for either live talent or virtual object tracking
– x1 Hirose lens cable provided at choice between Canon, Fujinon, Angénieux, Cooke
– x1 universal mounting kit providing cheeseplates, 15mm rods, and dual clamps
– Various gear: hand controller, calibration tripod, USB charger, and cables

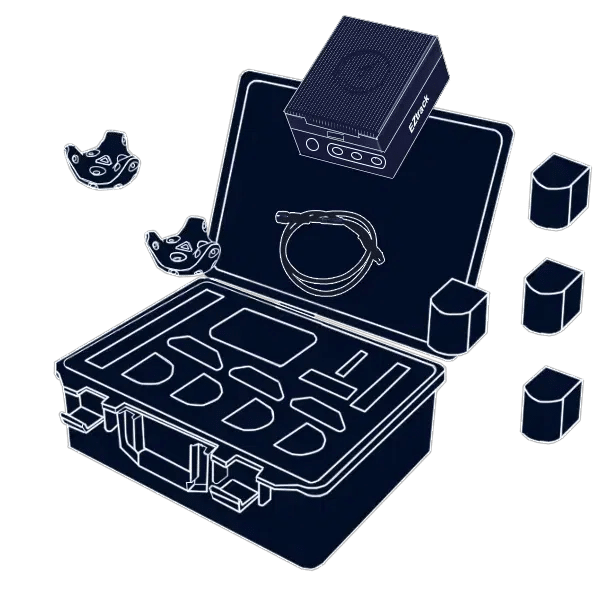

– Solid Pelicase 1550 transport box, ready to be unboxed on set!
Main EZtrack® Hub Unit

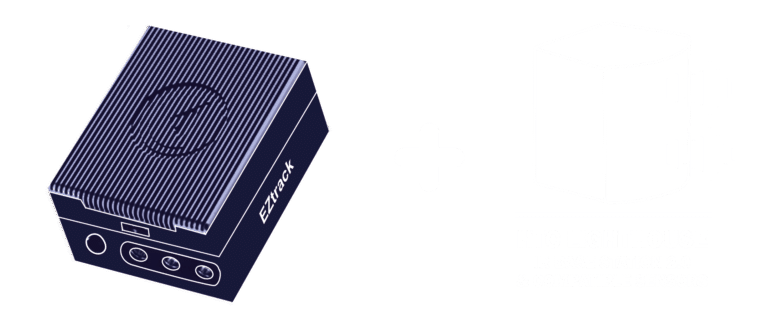

Lighthouse V2.0 Base Stations
Hirose lens cable to directly readout FIZ lens data from typical Broadcast zoom lenses with drive units. Supported lines: Canon, Fujinon, Angénieux, Cooke /I compatible optics.
Every EZtrack Hub unit processes positional tracking of one studio camera with one dedicated optic, whatever its type: ENG/EFP Broadcast zoom, Hybrid zoom, Prime.
One hub to achieve multiple scenarios
